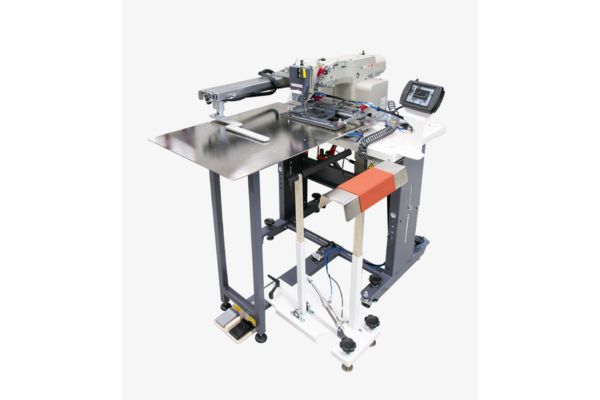

The VM10 (double colour) and the VM10-M (single color) are two automatic programmable units which carry out “J stitch” on both left and right front fly panel, on jeans, casual trousers and workwear. The machines permit to create a customized “J” pattern with the maximum freedom of style, satisfying any fashion request, with no cost in terms of extra jigs. The units can achieve an incredible production rate, with no need of skilled operator.
Left J-Stitch
Right J-Stitch
TECHNICAL SPECIFICATIONS
Sewing Head: Juki PLK-G10 MAXI Vi.Be.Mac.
Max Sewing Speed: 2800 rpm (single needle version) / 2500 rpm (double needle version)
Max Sewing Area: 258 X 158 mm
Clamp Sewing Area: 245 X 145 mm
Stitching Length: from 0.1 to 20 mm (0.1 Step)
Power Supply Voltage: 220 V 50/60 Hz
Sewing Machine Motor: Ac Servomotor Juki 750w (Direct Drive)
Control Box: Juki PLKGCU20
Air Consumption: 20 L/min
FEATURES
- Perfect match between fly-piece and front left panel
- Incredible production rate, with no need of any skilled operator or helper
- Widest sewing area in the market (245 x 145 mm)
- Cheapest moulds worldwide (local made in 5 continents)
- Sewing patterns supplied by Vi.Be.Mac. through email in maximum one working day
- Possiblity to upload the program directly on the machine’s control box thanks to the USB flash memory device
- Touch screen for easy and fast programming
DATA
- Time required to change clamps / moulds: 3 min
- Easy design program
The accessories described here may not be included in the price of the machine. Please refer to the commercial documents for information on prices and conditions.
