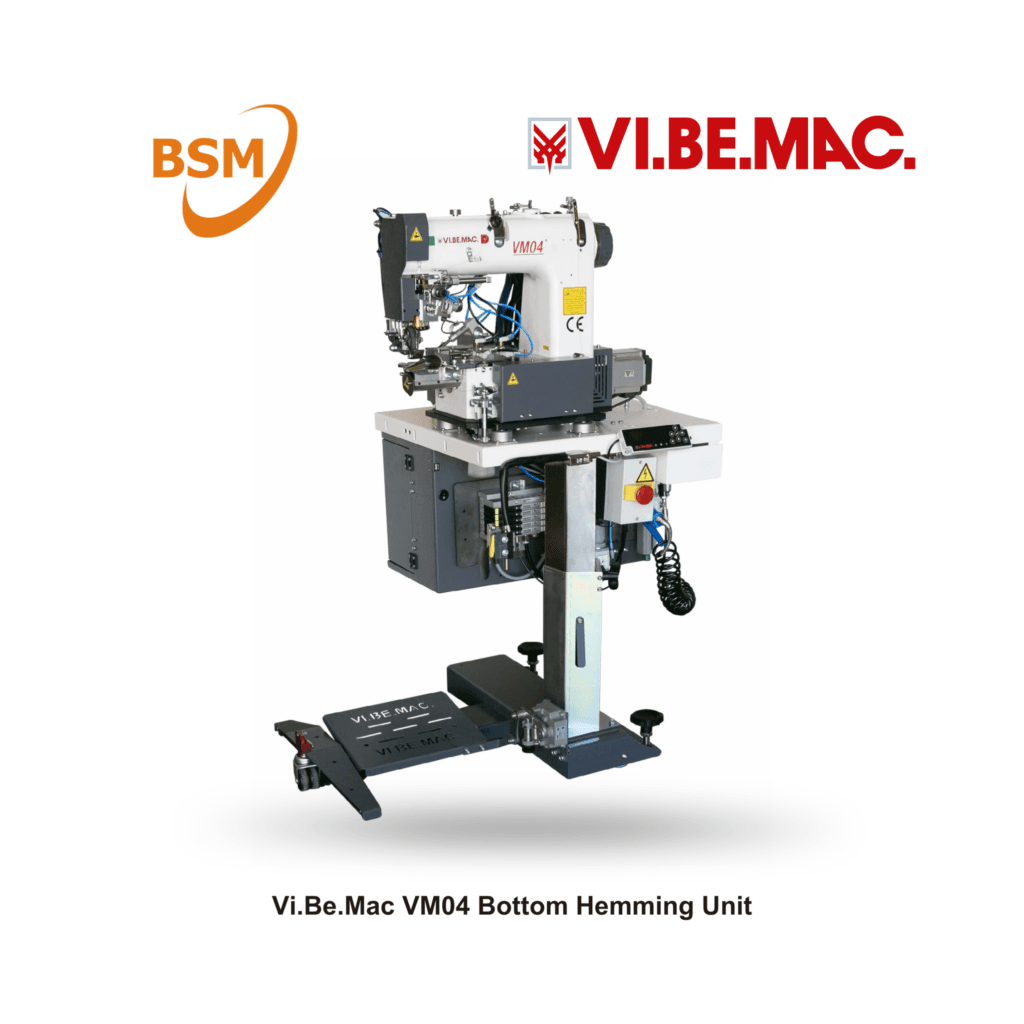

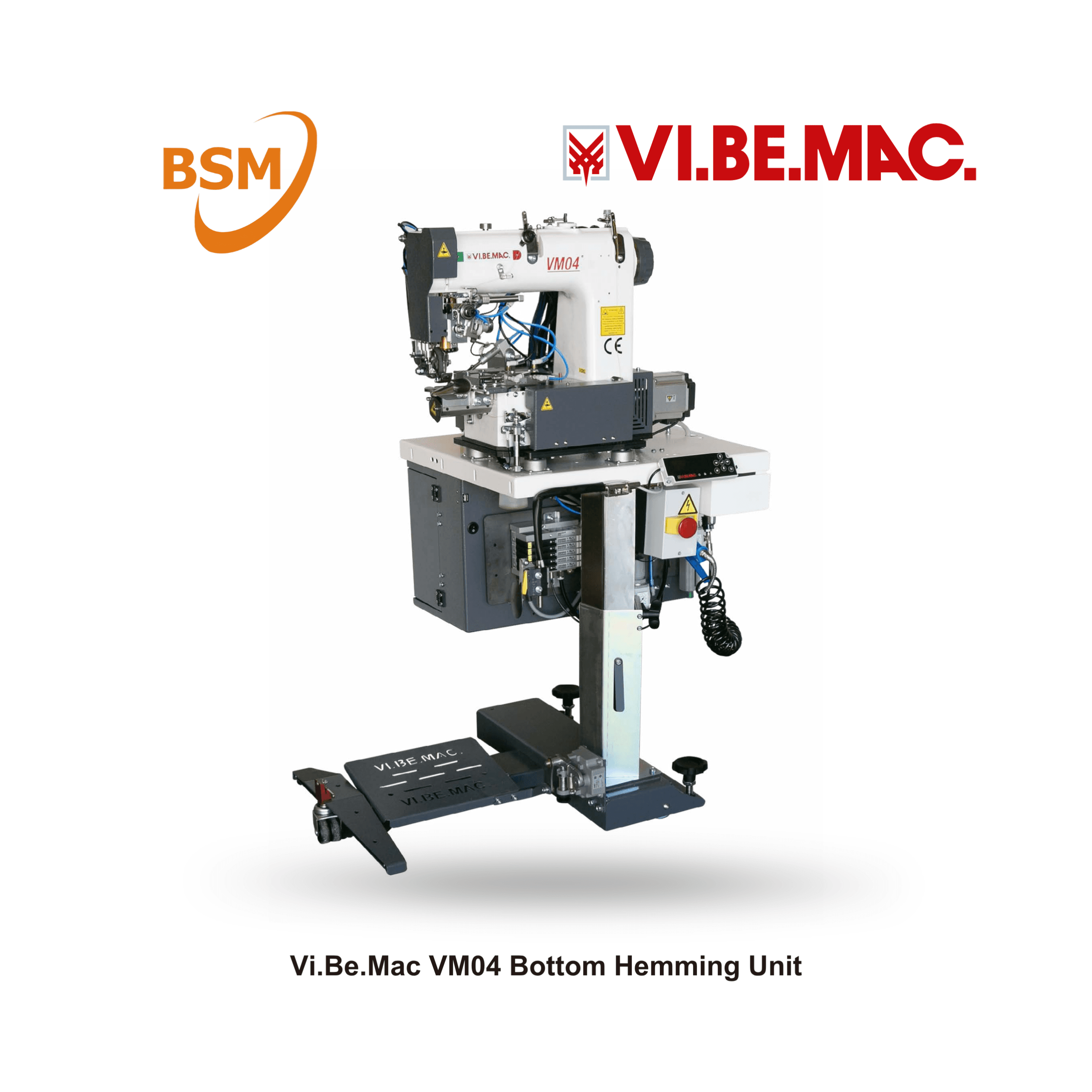

Vi.Be.Mac VM04 (Bottom Hemming Unit)

The Vi.Be.Mac VM04 Bottom Hemming Unit is a high-performance industrial solution designed for trouser bottom hemming operations, delivering consistent quality, precision, and high productivity. Entirely designed and manufactured in-house by Vi.Be.Mac. in Italy, the VM04 combines advanced sewing technology with flexible operation for different fabric types and hemming requirements.

Equipped with a Direct Drive Brushless Motor, advanced Vi.Be.Mac CPU control system, needle feeding technology, and a patented fast conversion system, the VM04 provides precise control and efficient production. It can be converted between lockstitch and chain stitch in less than 25 minutes, making it highly adaptable to different production requirements.

The machine is also IoT and Industry 4.0 compatible, enabling production data sharing and improved process monitoring for modern garment manufacturing environments.

Key Features

• Designed for Trouser Bottom Hemming – Specialized solution for precise and consistent trouser hemline operations.
• High-Speed Performance – Maximum sewing speed of 4,000 rpm for chain stitch and 3,500 rpm for lockstitch.
• Patented Fast Conversion – Switch between lockstitch and chain stitch in less than 25 minutes.
• Advanced Needle Feeding Technology – Designed to handle even difficult stretch fabrics while maintaining high-quality results.

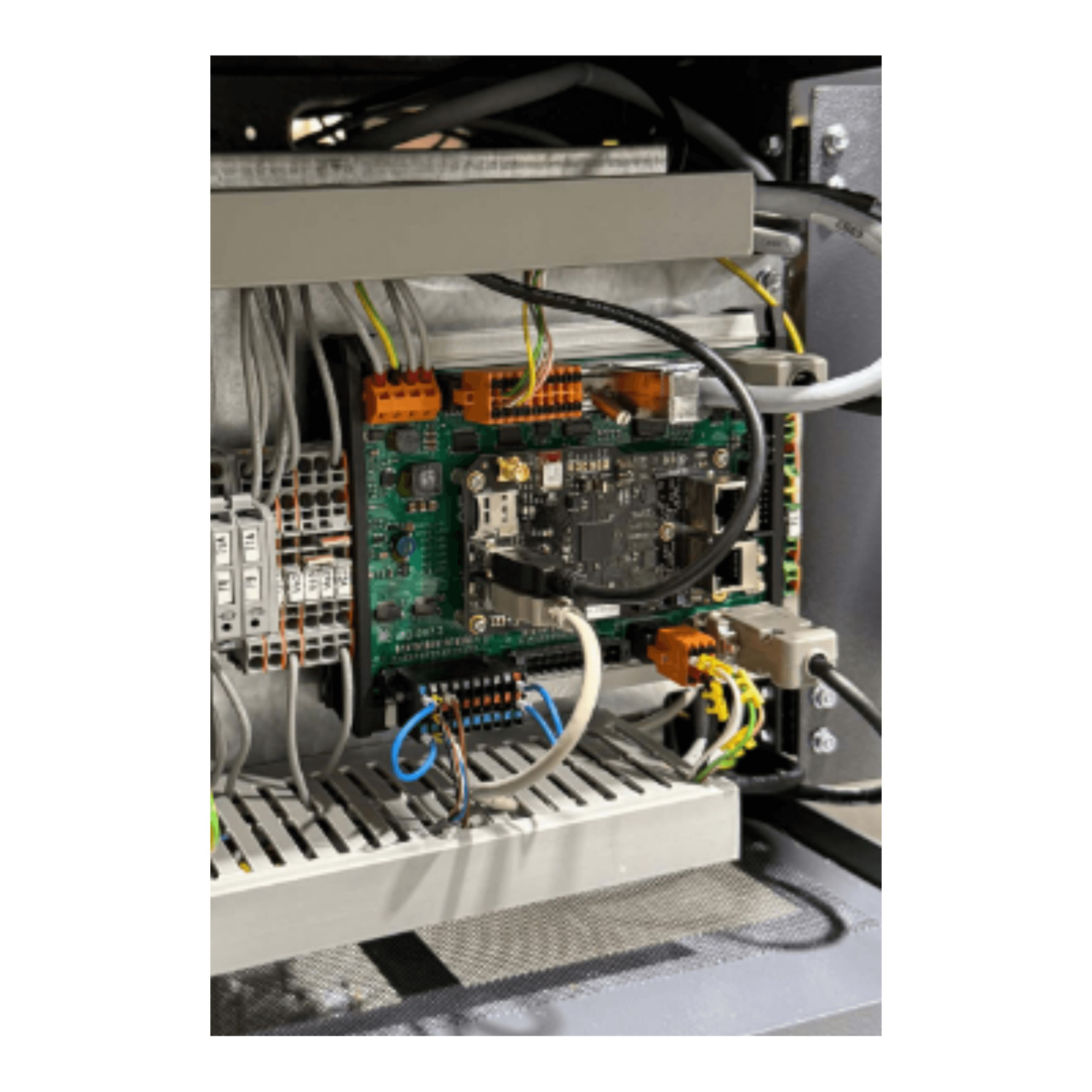

• Vi.Be.Mac CPU Control System – Provides precise control of machine functions including puller management, thread trimming, and stitch counting.
• OLED Multilingual Display – User-friendly interface with convenient software updates through USB.
• Direct Drive Brushless Motor – Delivers efficient operation, reduced energy consumption, and improved performance.
• Pneumatic Guide Opening System – Can operate manually or automatically and synchronizes with the foot lift for improved efficiency.
• Flexible Hemming – Front and reverse adjustable folders support different hemming styles.

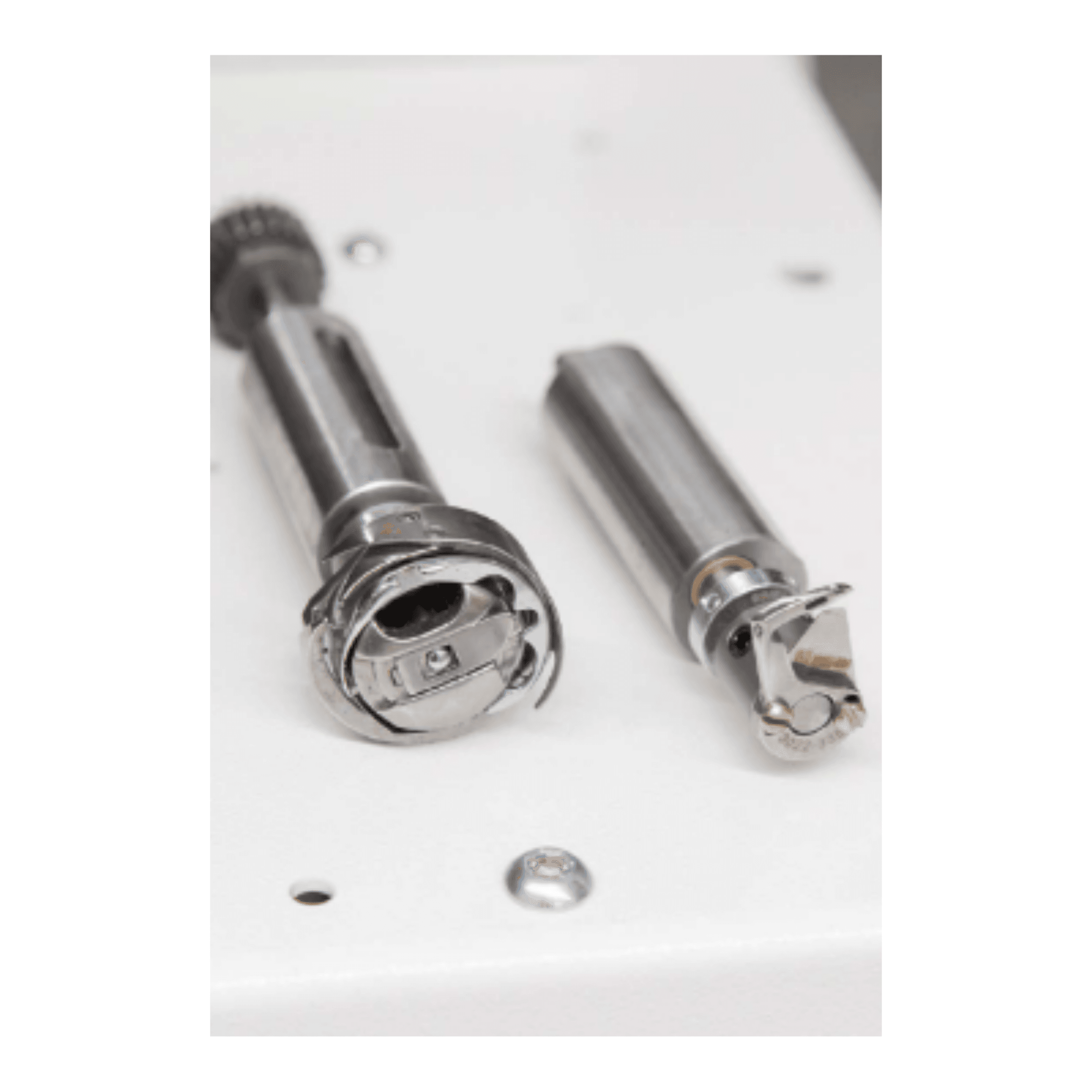

• King-Size Hook – Helps reduce the frequency of bobbin changes and improve productivity.
• Anti-Vibration Kit – Improves operator comfort while reducing operating noise.
• Condensed Stitch for Closing – On chain-stitch hemming, stitches can be secured with a condensed stitch, eliminating an additional operation.
• Light-to-Heavy Fabric Flexibility – Fabric changes can be made without mechanical component alterations or electronic adjustments.
• Smallest Cylinder Arm – The brochure highlights its compact cylinder arm design.
