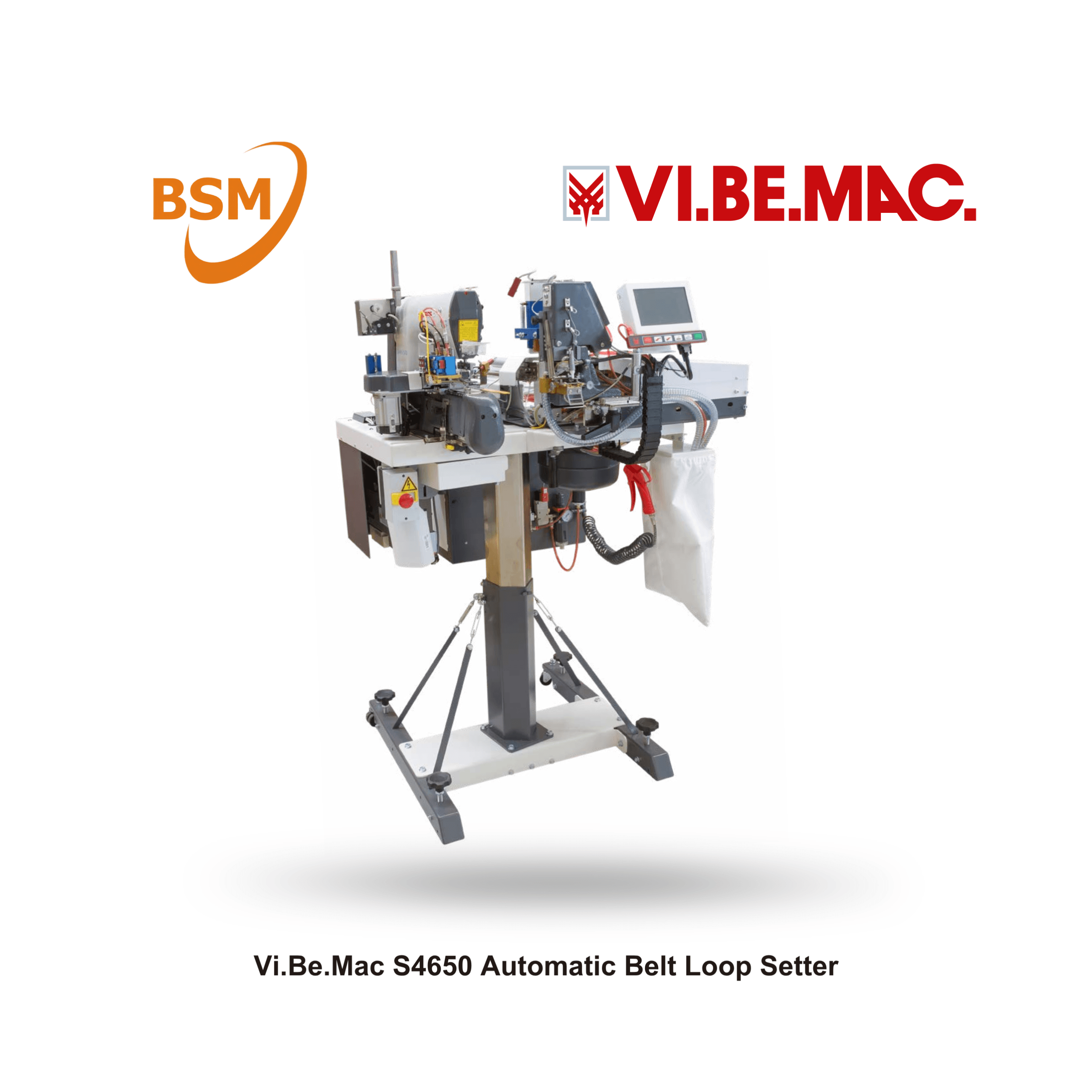

Vi.Be.Mac S4650 Automatic Belt Loop Setter

The Vi.Be.Mac S4650 Automatic Belt Loop Setter is an advanced industrial solution designed for precise and efficient belt loop setting in garment manufacturing. Powered by Vi.Be.Mac. technology, the S4650 ensures accurate loop alignment, clean and silent cutting, V-shaped loop cutting, and easy electronic and mechanical adjustments for consistent production results.

Designed to meet a wide range of fashion and garment production requirements, the S4650 can handle classic, semi-classic, inserted and double loops, along with a fully customizable bartack. Its advanced control system, flexible device positioning and loop alignment technology make it suitable for manufacturers looking for greater precision, flexibility and production efficiency.

The machine features a 7-inch colour touchscreen, powerful CPU-based software management, automatic diagnostics and multilingual software. USB or internet-based updates allow the system to remain up to date, while its offline mode provides continued operation even in the event of a touchscreen panel failure.

Key Features

• Automatic Belt Loop Setting – Designed for accurate and consistent belt loop attachment in garment production.
• Precise Loop Alignment – Loop alignment system helps prevent loop mispositioning on the fabric, particularly with folded-tail applications such as Q loops and 3D loops.
• Clean & Silent Cutting – Provides precise cutting with a V-shaped loop cut for improved finishing.
• 7-Inch Colour Touchscreen – Wide, fast and user-friendly touchscreen interface for machine operation and adjustments.
• Advanced CPU Control – Provides improved software management, seam quality, precision, pattern adjustment and customization options.
• USB & Internet Updates – Software can be updated through USB or internet with remote-control capability.
• Offline Operation Mode – Allows the machine to continue working without the touchscreen panel in case of a panel breakdown.
• Auto-Diagnostic System – Helps identify and avoid operating errors.
• Multilingual Software – Software is available in multiple languages for easier operation.
• Height-Adjustable Stand – New stand design allows convenient height adjustment.
• Scraps & Dust Cleaning System – Helps maintain a cleaner working environment around the machine.
• Double Compensatory Presser Foot – Provides additional pressure on multiple fabric layers, reduces flexure and offers a lower centre of gravity.
• Counter-Weight Device – Counterbalances presser-foot thrust, helping maintain correct positioning and reduce X&Y carriage wear.
• Revolving Device Positioning System – Devices can be positioned in 4 preset positions through a quick revolving system, helping reduce downtime during production changes.
• Flexible Loop Styles – Supports classic, semi-classic, inserted and double-loop styles.
• Customizable Bartack – Allows a fully customizable bartack according to production requirements.
