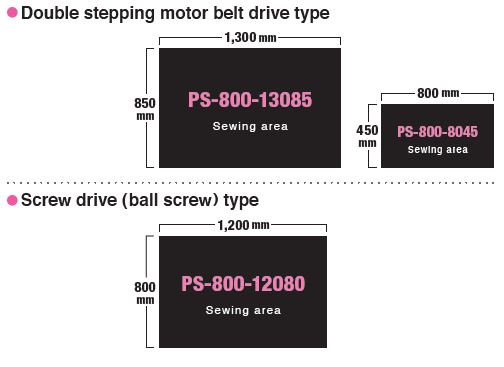

• Feeding type and sewing area

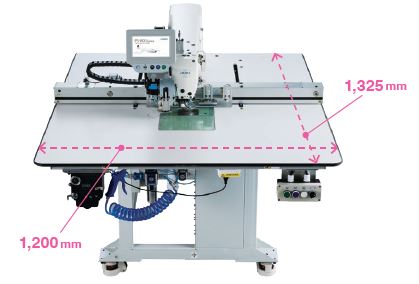

    Space-saving PS-800-8045

    The PS-800-8045 can be installed in a space-saving manner.Not only the parts department but also sewing lines can be used.(The table size of PS-800-8045 width is 1,200mm wideth, the same as 1-needle lockstitch machine.)

  • Patterns are identified by means of RFID/Barcode reader to enable automatic reading of sewing data

    Sewing patterns are automatically identified by means of RFID/ Barcode reader to automatically call up the relevant sewing program, thereby starting sewing quickly.
    *RFID (radio frequency identification): It is the technology to read and write data saved on IC chips through wireless non-contact transfer of radio frequency waves and is used to identify and manage products.

  • Operation panel

    The sewing pattern data format are supports DXF, AI, PLT, and DST. Sewing pattern data in these formats are widely used in many sewing plants. As a result, the operation panel is able to use the customers’ existing sewing pattern data immediately. As many as 999 sewing patterns can be saved on the large-capacity memory of the operation panel. (Editing software is included with the accessory.)

  • Oil stains are prevented

    The machine head has adopted the advanced dry technology ( no lubrication is required ). Only the hook needs lubrication. The dry head is very effective when sewing materials on which oil stains are likely to spread such as those for down jackets.

  • Cloth trimmer specifications

    The cloth trimmer comes in two different knives and a laser.

    • Rotary knife
      This knife is suited to the sewing products designed to have straight portions and curve portions.
    • Laser cutter
      This lazer is suited to soft materials such as knit.
