JUKI PLC-2760L Semi-dry Direct-Drive, Post-Bed, Unison-Feed, Lockstitch Machine With Vertical-Axis Large Hook

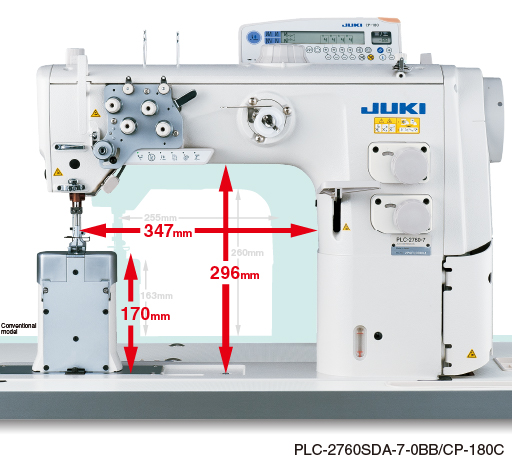

The long distance from the machine arm to the needle contributes to improved workability

Most-advanced machine best suited to the stitching for heavy weight materials.

Stitches with authentic quality

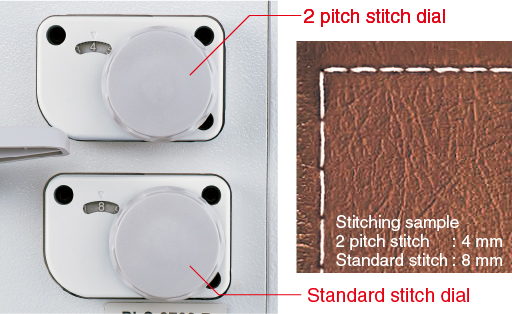

Stitch length can be changed over among different lengths

The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.

Reduction of noise and vibration

Reduce weight by using resin parts for surface of vibration point. Noise and vibration decrease by changing the gear of an Hook into a bevel gear.

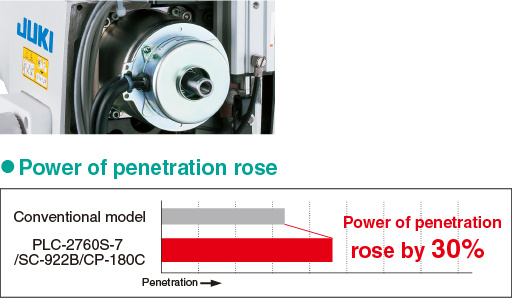

High-torque direct-drive motor is installed

The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
※It does not contain  without automatic thread trimmer.

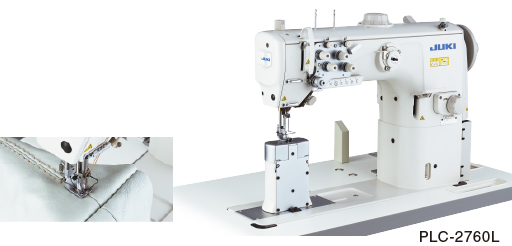

PLC-2760L (Thick-thread type)

Thanks to the hook, thread-take up and gauges exclusively designed for PLC-2760L, the machine can sew with thread count up to #6. The machine is provided with the exclusive top and bottom feed locus ideal for sewing with thick-thread.

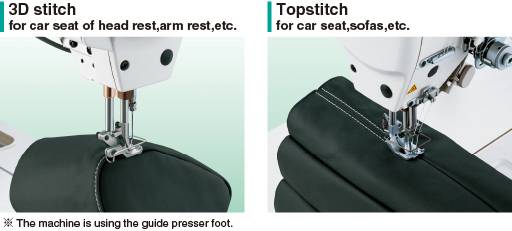

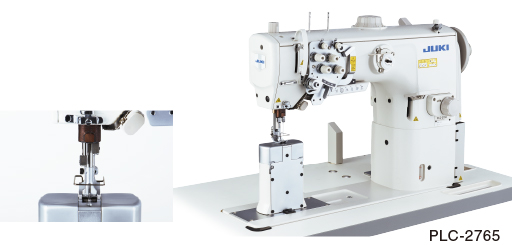

PLC-2765 (Organized split needlebars type)

With its organized split needlebars, the machine produces well-balanced topstitch-seams even at the corners of materials such as sofas.

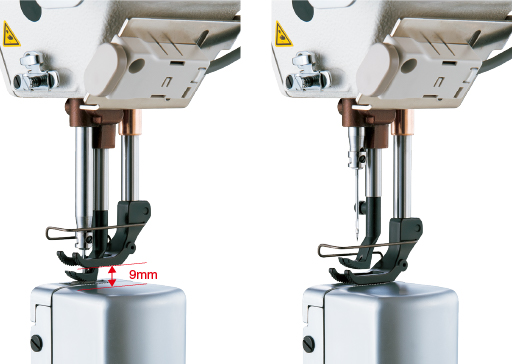

Walking-foot/presser-foot alternating vertical movement mechanism prevents irregular stitches

The sewing machine has adopted a feed mechanism which keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.

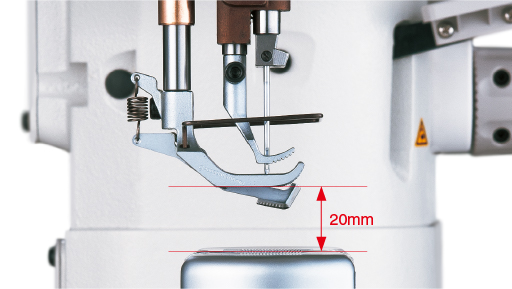

Higher lift of the presser bar

A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for expensive sofas, can be carried out with ease.

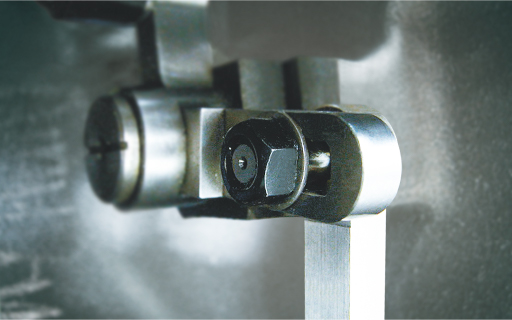

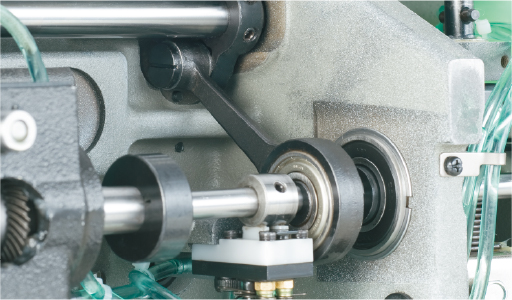

Eccentricity of the feed driving cam is adjustable

Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best-suited to the material and thread used. It is no longer necessary to prepare other subclass model sewing machines.

The upper and lower feed ratio is adjustable

The upper and lower feed ratio can be changed only by the adjustment of the lower feed amount without changing the upper feed amount, thereby preventing material slippage.

New mechanism of thread trimmer

Thread trimming can be stable even at the maximum 12mm sewing length.

Walking-foot/presser-foot alternating vertical movement mechanism prevents irregular stitches

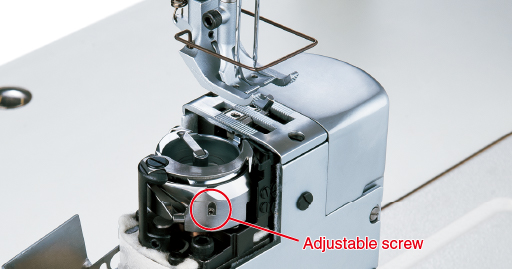

The hook which can be adjusted with screw amout of needle guard contact to needle. The needle guard can be easily adjusted. Therefore, it prevents stitch skipping and wear of hook edge.

New lubrication system

Oil does not flow backwards by a valve system. Therefore, oil can be supplied certainly even low speed. Thanks to the stable lubrication to the hook, it produces beautiful seams.

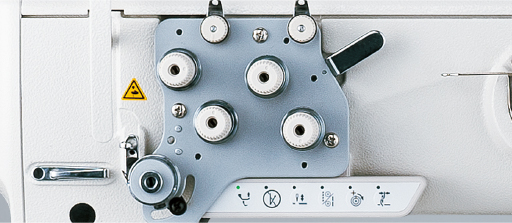

Double tension provided as : standard

The machine is able to perform sewing with low-count thread under a higher tension, which is difficult for the conventional single-tension method, with ease. The machine comes with a dual-tension thread tension system.

Multi-functional 6-string switch
(with automatic thread trimmer)

Single or Double can be set easy through Multi-functional 6-string switch, regarding the machine with trimmer. (Available for more thick material)
In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one push.

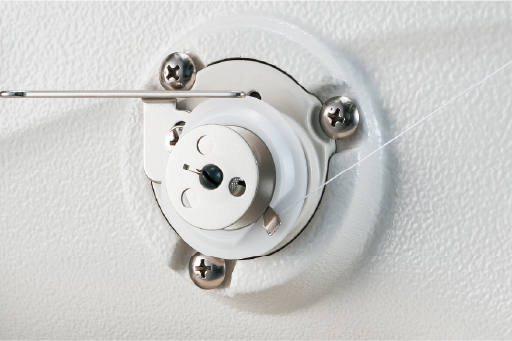

New bobbin thread spool device

New bobbin thread spool device is no neccessity of rolling thread manually.
