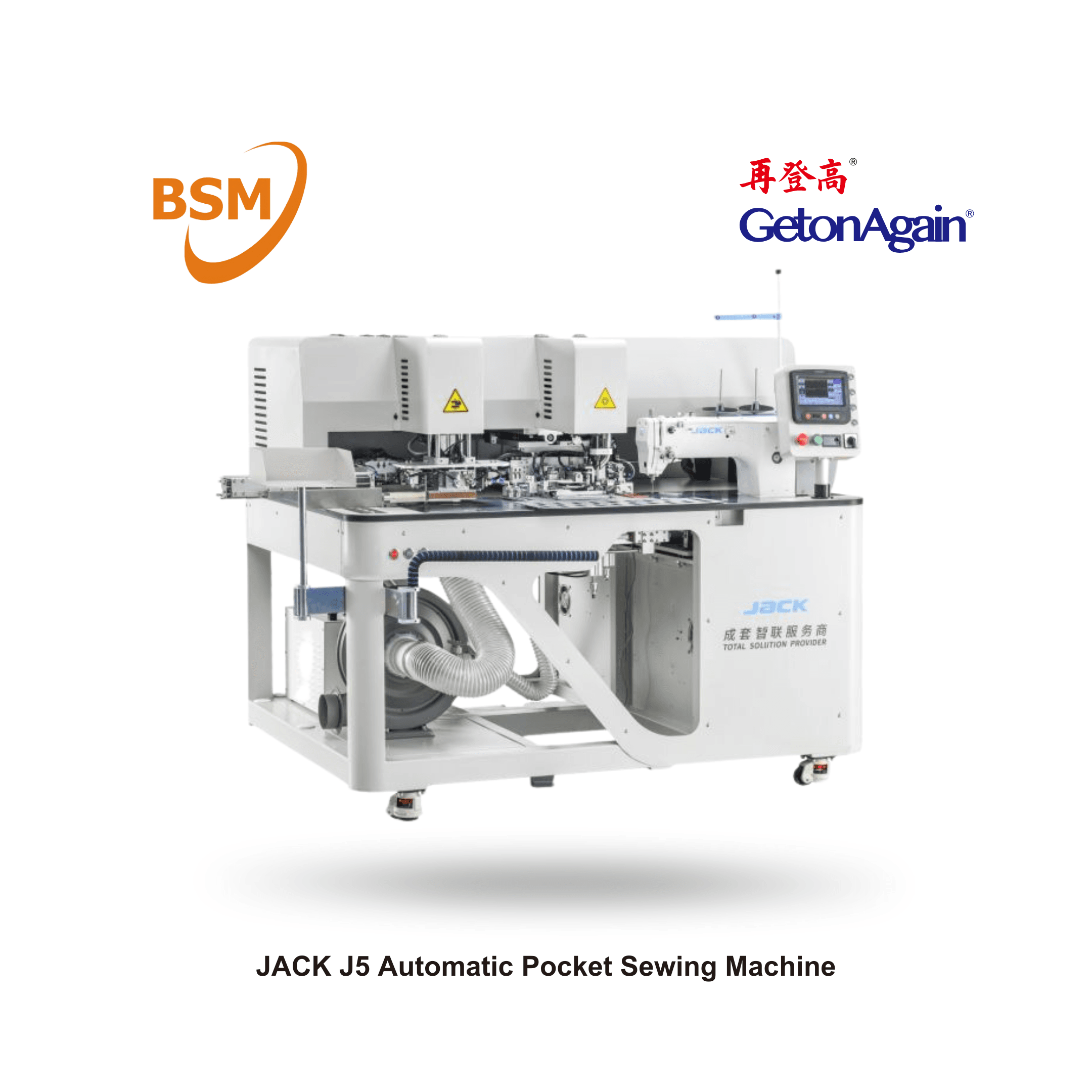

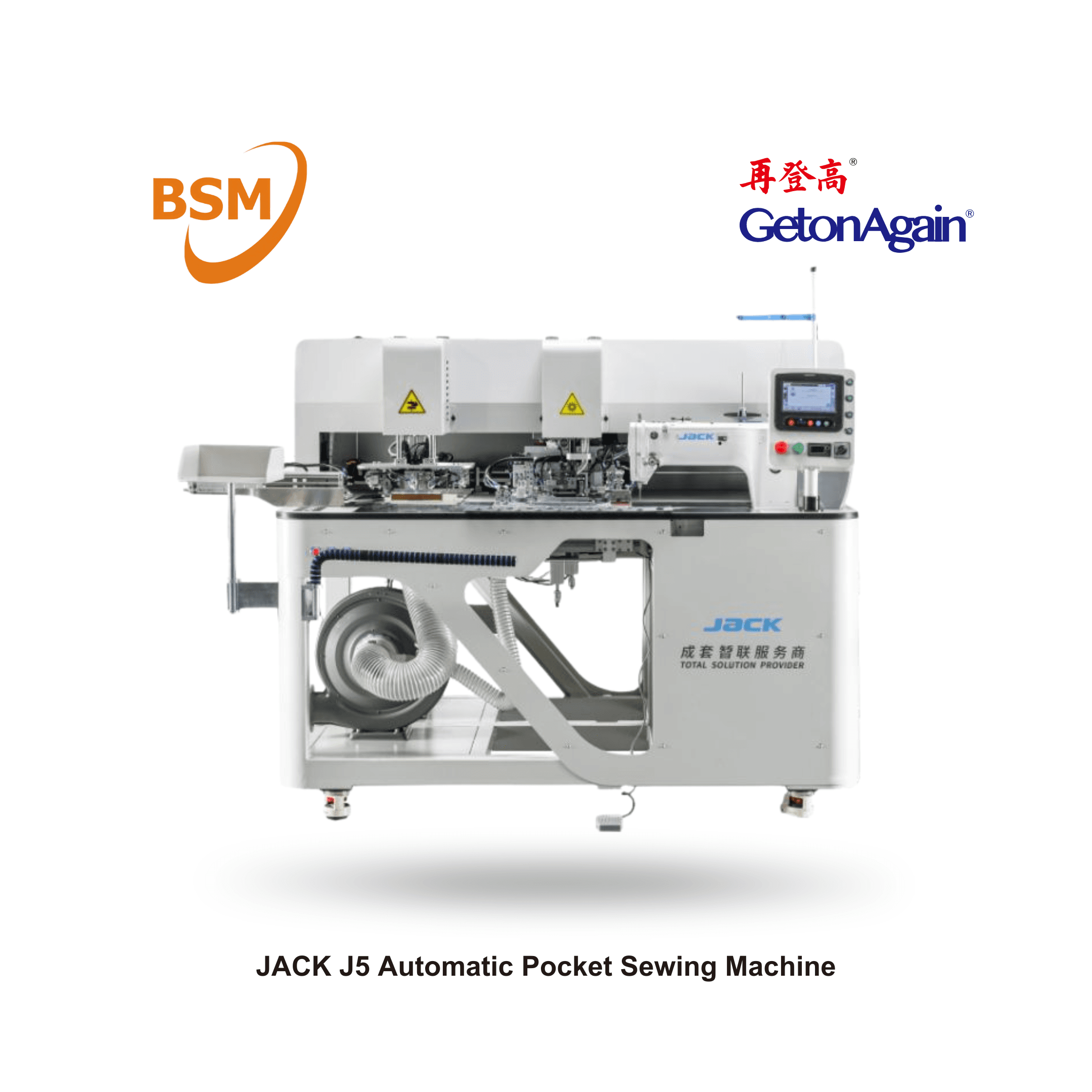

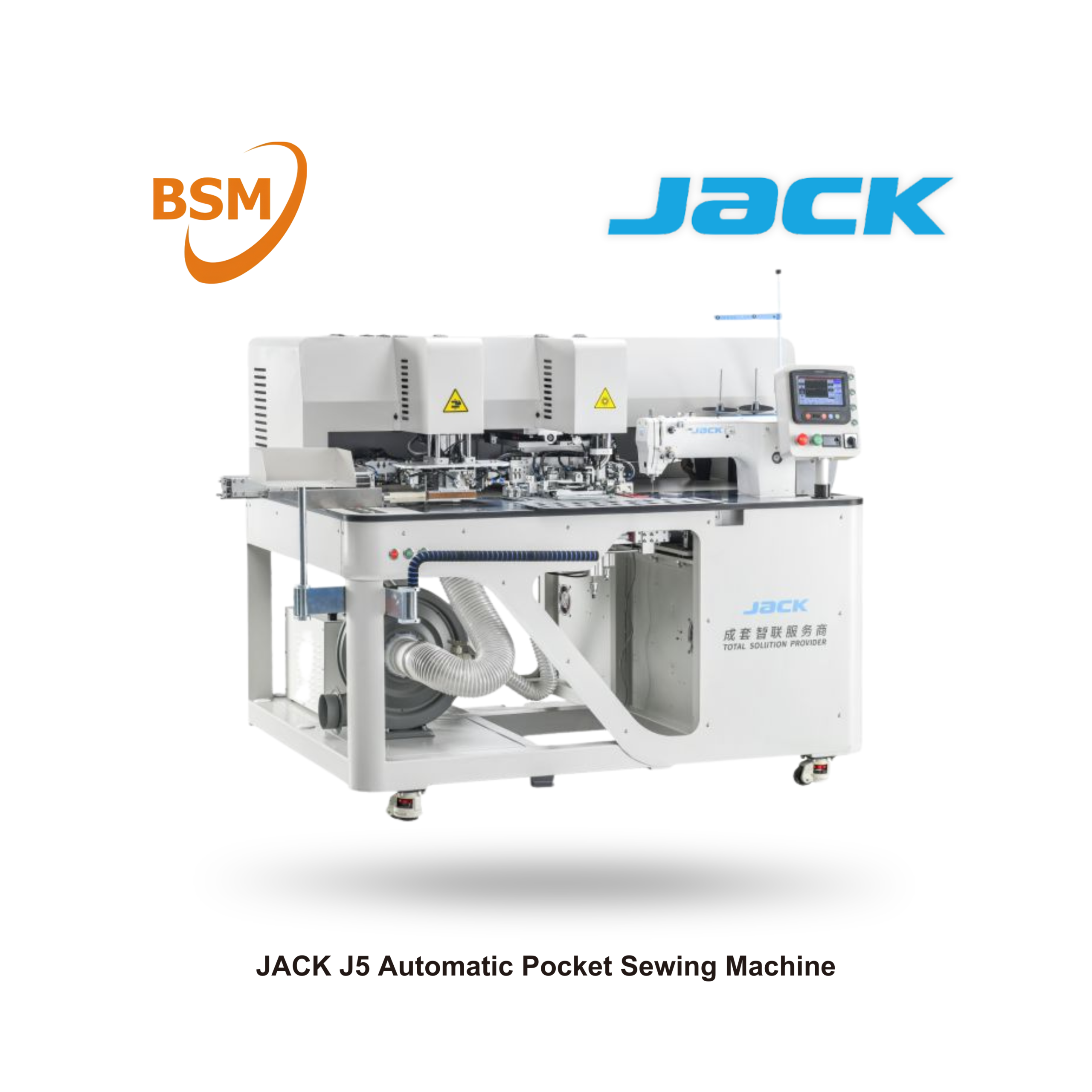

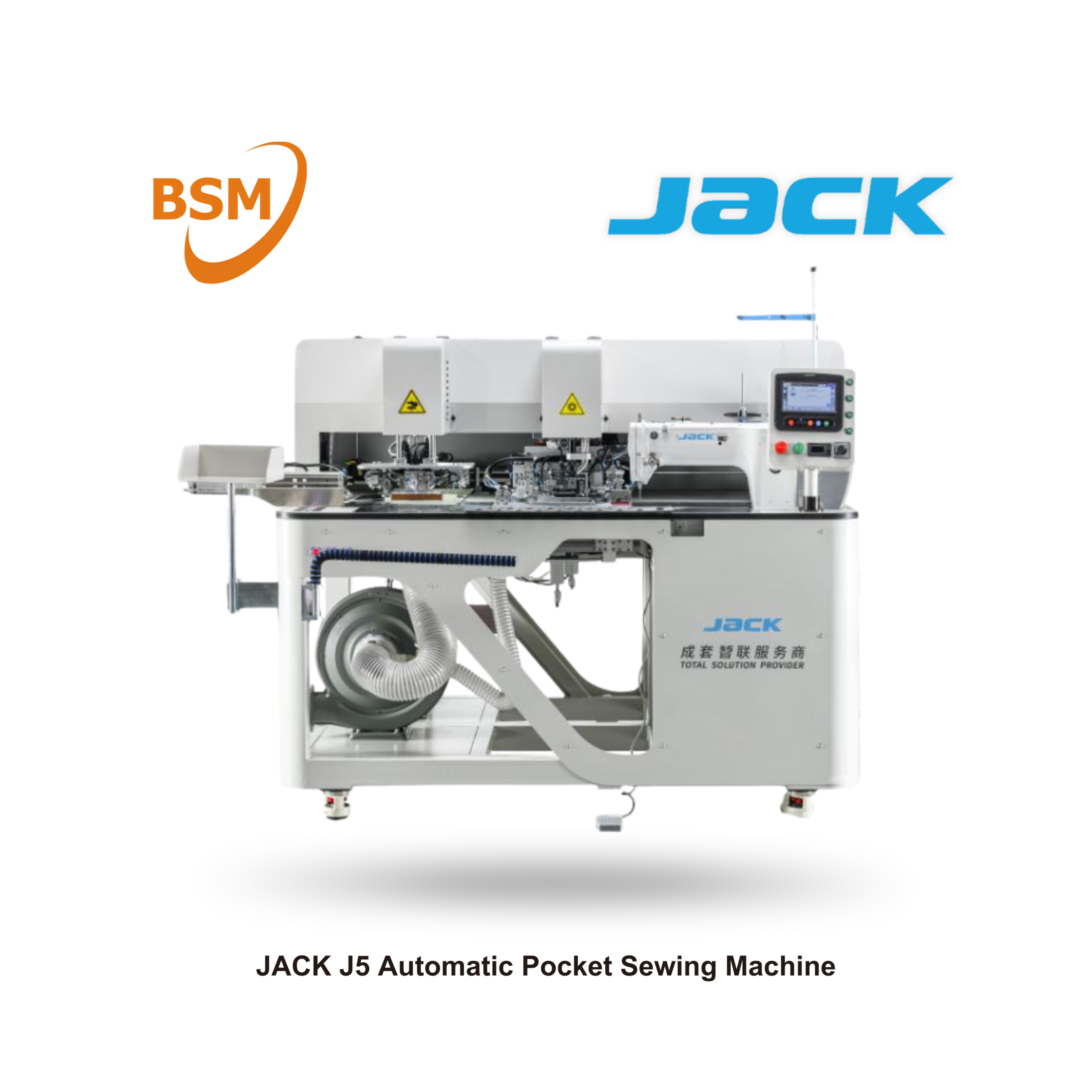

Programmable automatic sewing machine for cut pockets. The machine sews straight and oblique cut pockets, with one or two welts, with or without a flap. Possibility of sewing with a zipper tape and sewing a pocket bag. Performs 8 operations: cutting, ironing, folding, sewing, bartacking, fastening pocket edges, fastening pocket bags, fastening pocket flaps, regardless of the type of material, from light to heavy.
All operating parameters, including pocket type, are programmed on a clear control panel, equipped with a USB port for entering external data or transferring settings to another machine. The machine’s memory allows for saving 999 stitching patterns.
The pocket opening is cut before sewing using a laser integrated with the machine head. The machine is driven by energy-saving and reliable stepper motors. Rotary looper.
Technical parameters:Â
- Sewing speed: up to 2,500 stitches/min.
- Needle system: MT*190 (12#, 14#, 16#)
- Presser foot lift height: 80mm
- Material cutting: : Laser 100W
- Length of protrusions: up to 21 cm
- Total width of protrusions: from 1 to 4 cm
- Power supply: 220V
- Package dimensions: 1.93×1.43×1.68 cm
- Weight: 950 kg
