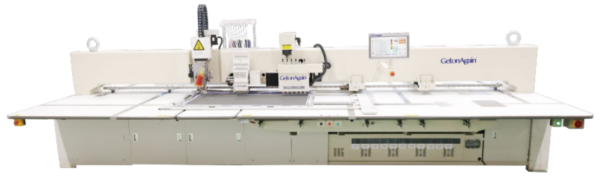

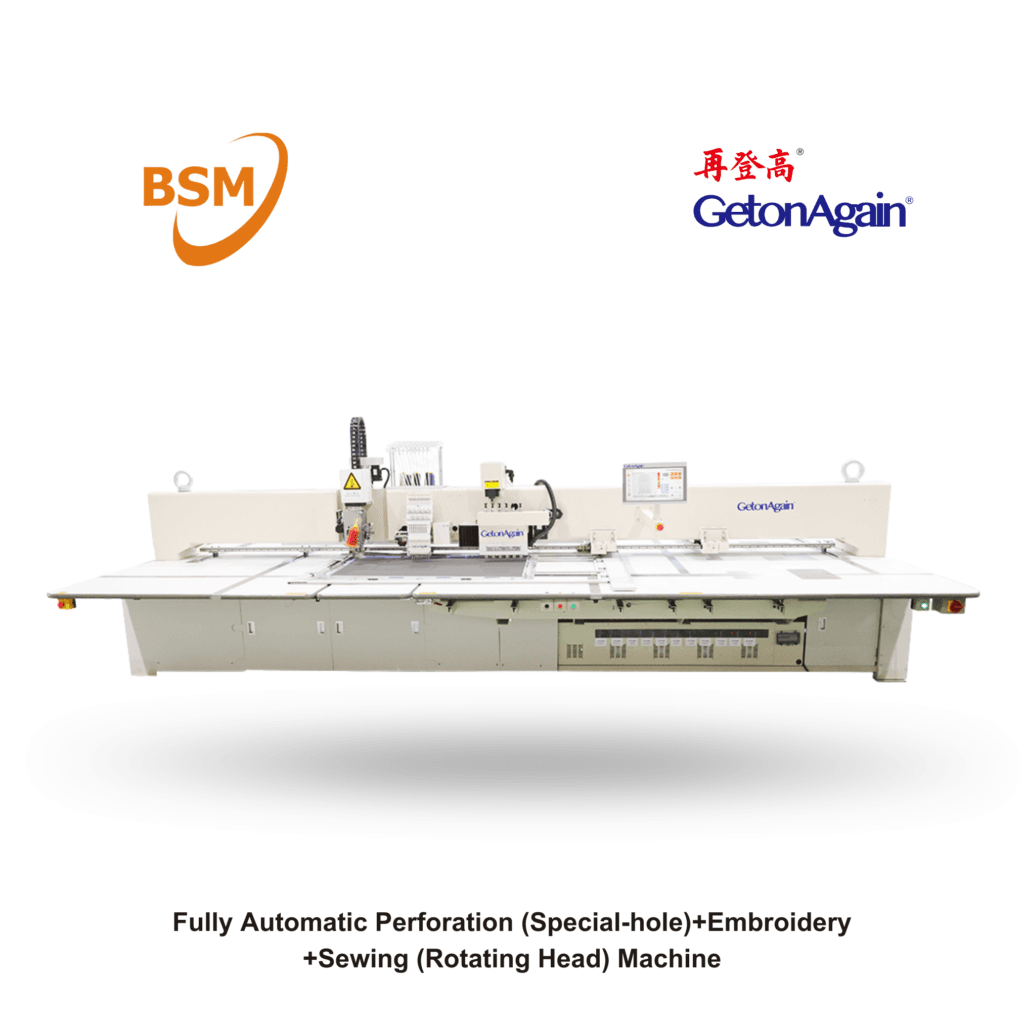

Fully Automatic Perforation (Special-hole)+Embroidery +Sewing (Rotating Head) Machine

Specially designed sewing machine head for leather materials, producing
beautiful stitching. The presser foot height is motor controlled with a wide
adjustment range.
·

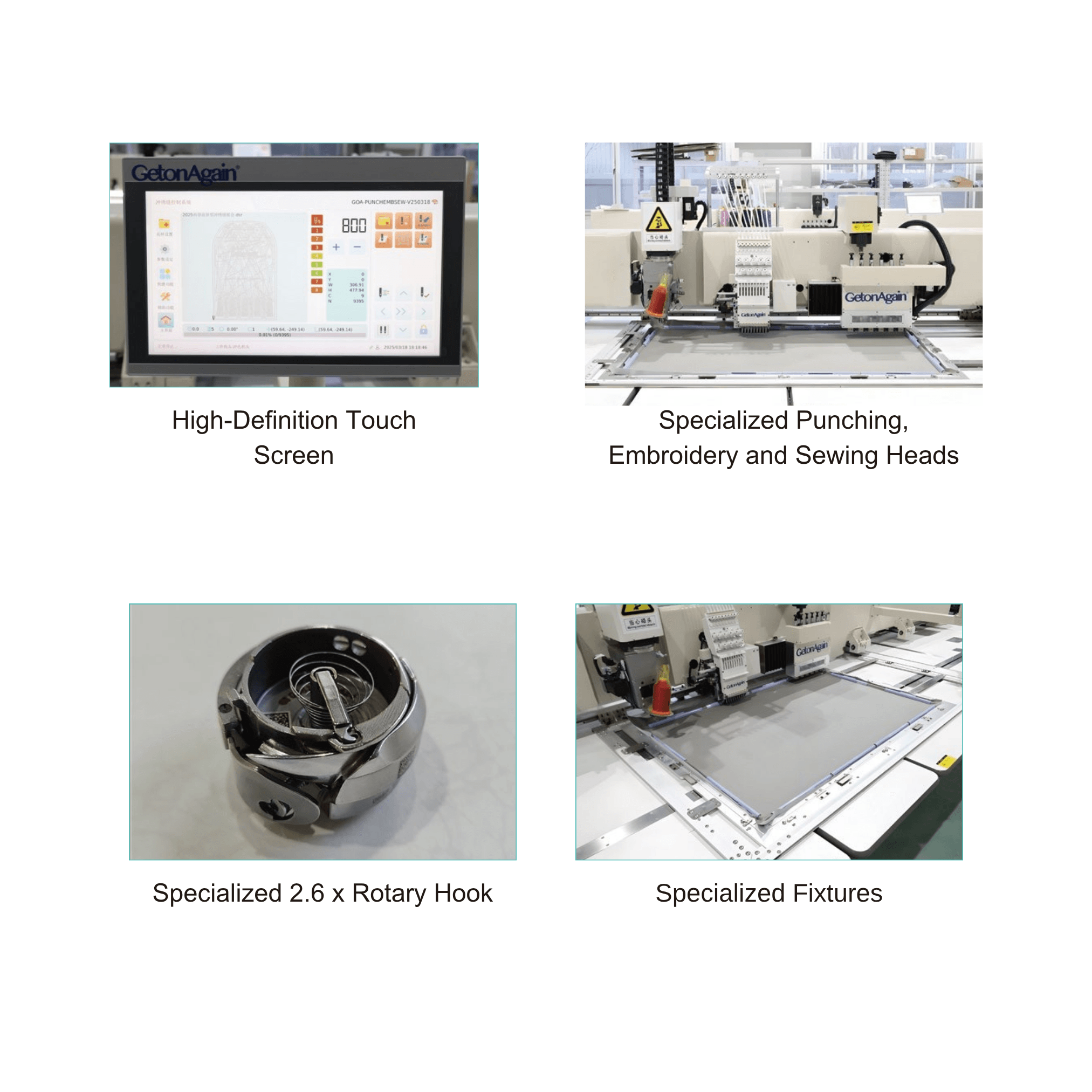

Equipped with a 15-inch touchscreen central control panel with a user-friendly
interface for easy operation.
·
Specially developed punching machine head for leather materials, supporting
various punching shapes, including round, square, rectangular,
diamond-shaped, and oval holes (hole diameter range: 0.8 mm – 10 mm).
·
Sewing machine head has up & down moving stroke of 50 mm, providing ample
space for material loading and ease of operation.
·
Sewing machine head features an “arbitrary rotation” structure, creating
beautiful stitching, reducing frame movement frequency, and improving
efficiency.
·
Includes functions such as upper thread breakage detection, bottom thread
counting, and fabric piece counting.
·
Needle bar and related parts are treated with DLC coating, offering wear
resistance and extending service life.
·
The machine frame is specifically designed for punching, embroidery, and
sewing processes, ensuring structural stability and maintaining high precision.
·
Specially developed fixtures make material loading and unloading easy,
simplifying material replacement.
