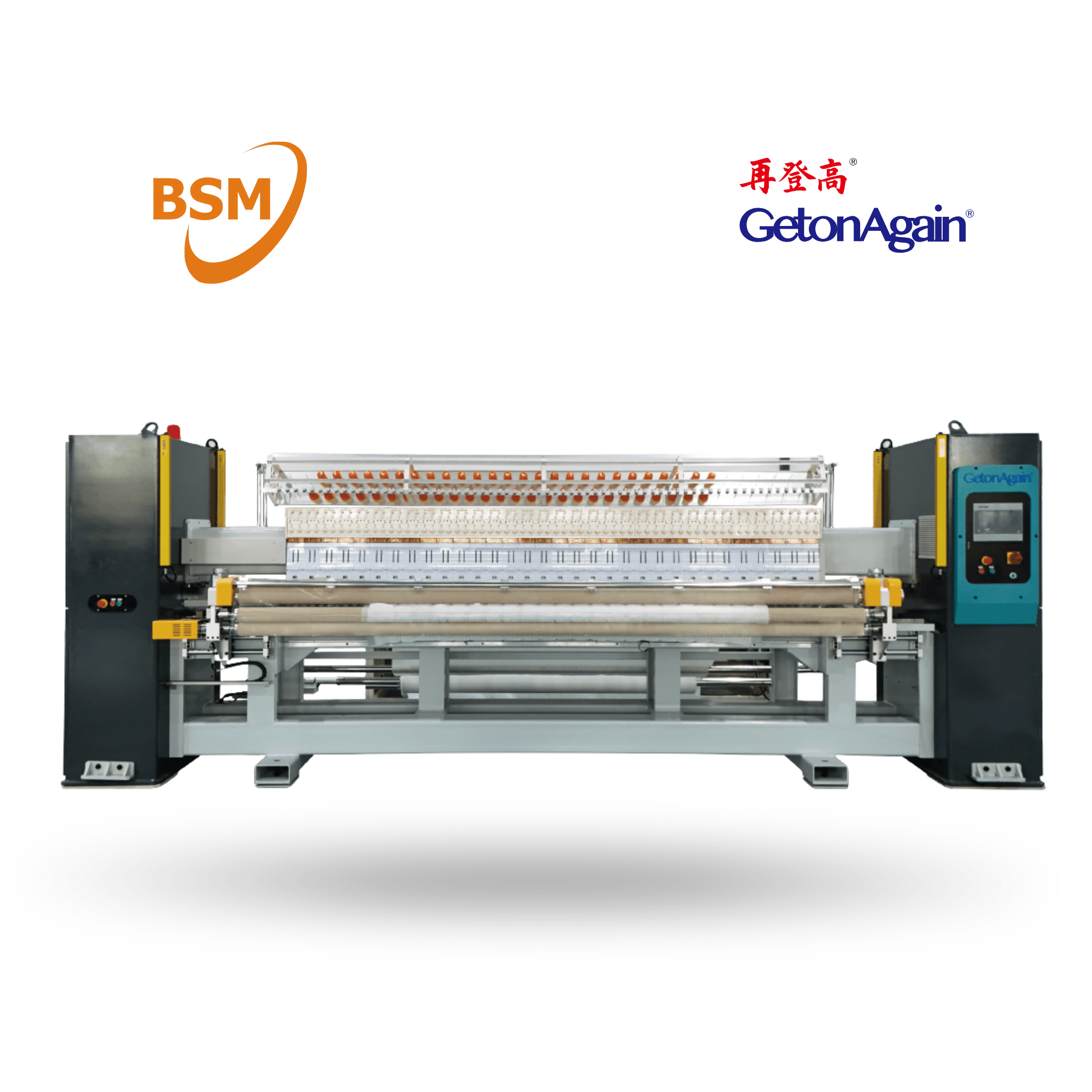

Computerized Single-color Single Roll Quilting and Embroidery Machine (Model A)

The Computerized Single-Color Single Roll Quilting and Embroidery Machine (Model A) is a high-performance industrial quilting and embroidery solution designed to deliver precision stitching, high productivity, and exceptional pattern quality for a wide range of textile applications. Ideal for manufacturers producing quilts, bedspreads, mattress protectors, pillowcases, blankets, garments, automotive seat covers, car floor mats, and furniture upholstery, this machine combines advanced quilting technology with intelligent automation to maximize production efficiency.

Equipped with a new high-speed double-needle quilting and embroidery head, the machine allows independent or manual control of each needle bar, enabling quick needle spacing adjustments and seamless switching between quilting and embroidery patterns. Its custom large rotary hook provides four times the thread capacity of conventional rotary hooks, significantly reducing bobbin replacement frequency and minimizing production downtime.

Powered by a fully servo-driven system with an optimized transmission design, the machine ensures smooth, stable, and high-speed operation of up to 1000 RPM (recommended operating speed: 750–850 RPM). The integrated 10.4-inch touchscreen control system, automatic thread break detection, pattern repair function, and compatibility with professional quilting and embroidery design software make it an ideal solution for manufacturers seeking consistent quality, flexible pattern customization, and reliable high-volume production.

Key Features

• High-speed Computerized Single-Color Single Roll Quilting and Embroidery Machine for industrial textile production.
• Suitable for quilts, bedspreads, mattress protectors, pillowcases, blankets, garments, automotive seat covers, car floor mats, and furniture upholstery.
• Equipped with a new high-speed double-needle quilting and embroidery machine head for superior stitching quality.
• Independent dual needle bar control allows flexible activation, locking, and quick needle spacing adjustments.

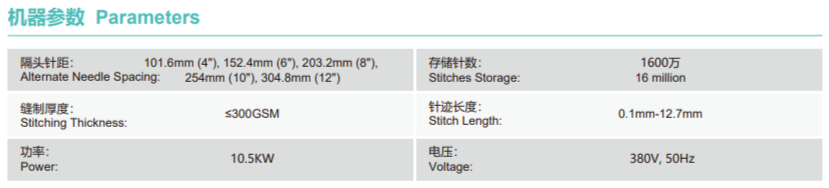

• Minimum needle spacing of 50.8 mm (2″) for intricate quilting and embroidery applications.
• Maximum sewing speed of 1000 RPM, with an optimal operating speed of 750–850 RPM.
• Custom large rotary hook and bobbin system with 4× thread capacity, reducing bobbin changes and increasing productivity.
• Fully servo-driven system with optimized transmission and gear reduction for smooth, stable, and energy-efficient performance.
• Built with premium bearings, lead screws, belts, sensors, switches, and electrical components from trusted brands.
• Automatic thread break detection ensures consistent stitch quality and minimizes defective production.
• Integrated pattern repair function reduces material waste and eliminates large-scale rework.
• 10.4-inch touchscreen Human-Machine Interface (HMI) for intuitive operation and machine control.
• Compatible with professional quilting, embroidery, and quilting-embroidery design software for unlimited pattern customization.
• Stores up to 16 million stitches, supporting complex quilting and embroidery designs.
• Adjustable stitch length from 0.1 mm to 12.7 mm for versatile production requirements.
• Supports stitching materials up to 300 GSM.
• Optional Automatic Feeding System and Automatic Collecting Rack for increased automation and workflow efficiency.
• Equipped with Safety Light Curtain for enhanced operator safety during production.
