A direct-drive type model has been added

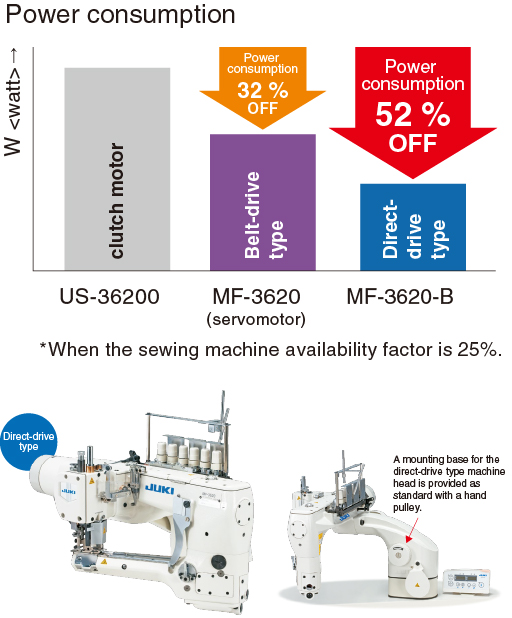

A servomotor is installed on the machine head for adopting the direct-drive mechanism. The power consumption has been reduced by approximately 52 % as compared with the conventional model. Since the sewing machine provides
superb responsiveness, the material can be controlled as desired when sewing a curve part. In addition, the belt-drive type sewing machine (when a servomotor is used) has also had its power consumption reduced by 32 %.
-
Oil leakage is prevented
Frame: The frame is shielded and equipped with mechanisms for micro-quantity lubrication and JUKI’s unique forced oil circulation. The thread take-up mechanism arranged on the outside of the arm prevents the entry of oil splashes and dust.
Looper section: The MF-3620 is also configured with JUKI’s unique oil-thrower mechanism to protect the looper section from oil infiltration. Excess oil is speedily reclaimed via the new oil groove. -

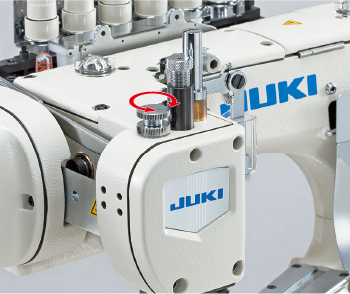

The sewing machine is provided as standard with a micro-lifter
Elastic materials or delicate materials can be sewn with the presser foot slightly raised from the start to the end of sewing, thereby reducing material slippage and damage.
-

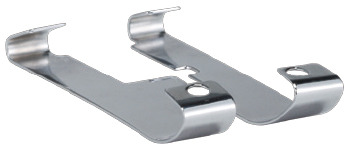

The overlapped amount of the materials is adjustable by means of a presser foot shoes
(L200 type)For the both-side trimming type machine (L200), the finished overlapped amount of the materials may not be sufficient depending on the characteristics of the material. In such a case, the overlapped amount of the materials can be adjusted by means of the presser foot shoes supplied with the unit.
-

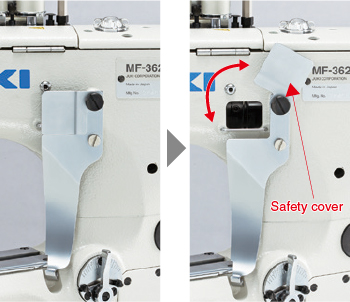

Designed for upgraded safety and security
A safety cover has been provided to prevent injury by the bobbin thread cam section.
-
Damage by the feed dog is reduced
The presser foot of the flat seamer is a special one in which a cloth cutting mechanism is installed. This special presser foot has been originally designed by JUKI. The presser foot ensures a smoother feed of the material and helps reduce
the load applied to the material. (In addition, the service life of the cloth cutting knife is
JUKI MF-3620U300-B 4-Needle, Feed-Off-The-Arm, Flatseamers, Top and Bottom Coverstitch Machine
- The sewing machine prevents oil leakage
- Create beautiful seams on underwear, fleece wear, swimsuits, even on new materials
- 4-needle Flat seamer to prove JUKI’s original safety and ingenuity
-
The overlapped amount of the materials is adjustable by means of a presser foot shoes (L200 type)
